Additional Features using MkDocs Plugins

Places to get MkDocs Plugins: Official List, Wheelodex, and GitHub.

Awesome Pages#

MkDocs Awesome Pages plugin simplifies configuring page titles and their entries order.

Install the plugin:

pip install -U mkdocs-awesome-pages-plugin

Enable it in the config file mkdocs.yml:

plugins:

    - search # built-in search must be always activated
    - awesome-pages

Create a YAML file named .pages in a directory and use a local nav attribute to customize the navigation in each folder with some more extra configurations:

1. A 3-dots ... entry is used to specify where all remaining items should be inserted. It can filter the remaining items using glob patterns or regular expressions. For example:

   The pattern is checked against the basename of remaining items - not their whole path, so it can be used to filter files in sub-folders.

2. Hide directory by setting the hide attribute to true.

3. Optionally set the directory title using the title attribute.
   Optionally specify a title for the navigation entry before its document path. For example:

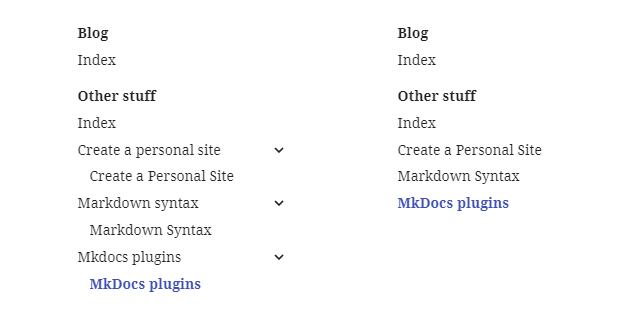

4. Collapse single nested pages by setting collapse_single_pages attribute to true.

Example:

title: New section
nav:

    - ... | introduction-*.md
    - ...
    - summary.md
    - First page: page1.md
    - Link Title: https://example.com
hide: false
collapse_single_pages: false

Section index#

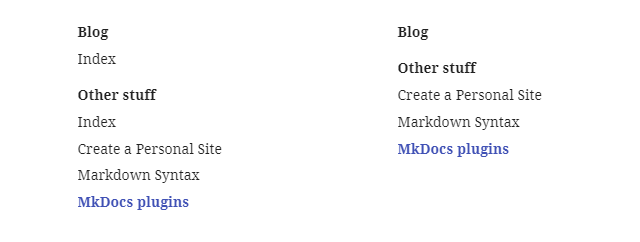

In MkDocs, each directory will become a section, and by default, section only contains its children pages. There is no page associated to a section. MkDocs Section Index is a plugin that attaches the first child page, usually an index page, to the section link.

Install the plugin:

pip install -U mkdocs-section-index

Enable it in the config file mkdocs.yml:

plugins:

    - search # built-in search must be always activated
    - awesome-pages
    - section-index # must be after awesome-pages # (1)

1. Note that the feature navigation.indexes comes with Material theme already to the work of this plugin.

The merged section page shows the section’s title from the directory name, not the attached page’s title.

Revision date#

To keep tracking the last modified date of a post, git-revision-date plugin can be used. A better alternative plugin is git-revision-date-localized which provides more types of date format (e.g. in time-ago format), and the creation date.

Install the plugin:

pip install -U mkdocs-git-revision-date-localized-plugin

Enable it in the config file:

plugins:

    - search # built-in search must be always activated
    - git-revision-date-localized:
          enable_creation_date: true
          type: iso_date

This plugin creates new field in the post’s meta-data which content the creation and update date. This information is used to sort the posts by revision date to get recently updated items, as shown in the Recent blog posts page.

Print to PDF#

To export the posts on this blog, there are some plugins which can do it. However, most of them depend on Weasy Print which in turn depends on many other packages. There is one plugin that prints in an easy and simple way: use browser to print page by sending print command (like press Ctrl + S).

More detail of installation and configuration the MkDocs PDF with JS plugin for printing to PDF can be read in Print to PDF.

Macros#

MkDocs Macros is a plugin/ framework that makes it easy to produce richer and more beautiful pages. It can do two things:

1. Transform the markdown pages into a Jinja2 templates that can use variables, macros and filters.

2. Replace MkDocs plugins for a wide range of tasks: e.g. manipulating the navigation, adding files after the HTML pages have already been generated etc.

Install the plugin:

pip install -U mkdocs-macros-plugin

Enable it in the config file:

plugins:

    - search # built-in search must be always activated
    - macros

DrawIO Exporter#

DrawIO Exporter is a great plugin that exports the .drawio diagrams to images at build time and insert them to the document. This plugin can replace the Mermaid plugin, and it is faster thanks to no JavaScript needed at runtime. It also helps to enable instant navigation mode of the Material theme.

Install the plugin:

pip install -U mkdocs-drawio-exporter

Enable it in the config file:

plugins:

    - search # built-in search must be always activated
    - drawio-exporter

To create end edit .drawio diagram, download and install the diagrams.net application.

To import a diagram, just use the syntax for inserting an image:

![My alt text](my-diagram.drawio)

The plugin will generate an SVG image to a cache folder (default in docs\drawio-exporter), and then modify the image’s source to point to the generated image.

If the diagram is a multipage document, append the index of the page as an anchor in the image’s URL to select the target page:

![Page 1](my-diagram.drawio#0)

![My alt text](my-diagram.drawio.svg)   // work
![My alt text](my-diagram.drawio.svg#1) // does not work

Mermaid#

MkDocs Mermaid2 is a plugin to render textual graph description into Mermaid graphs (flow charts, sequence diagrams, pie charts, etc.).

Install the plugin:

pip install -U mkdocs-mermaid2-plugin

Enable it in the config file:

plugins:

    - search # built-in search must be always activated
    - mermaid2

And configure the code block parser for mermaid2 blocks:

markdown_extensions:

    - pymdownx.superfences:
          custom_fences:
              - name: mermaid
                class: mermaid
                format: !!python/name:mermaid2.fence_mermaid

Example:

``` mermaid
graph LR
  A[Start] --> B{Error?};
  B -->|Yes| C[Hmm...];
  C --> D[Debug];
  D --> B;
  B ---->|No| E[Yay!];
```

will render as:
